Jirous Jirous JRC-29EX MIMO parabola antenna pár 5GHz 29dBi, N aljzat

A vásárláshoz viszonteladói regisztráció
és bejelentkezés szükséges!

Érdeklődjön

Kedvencekhez

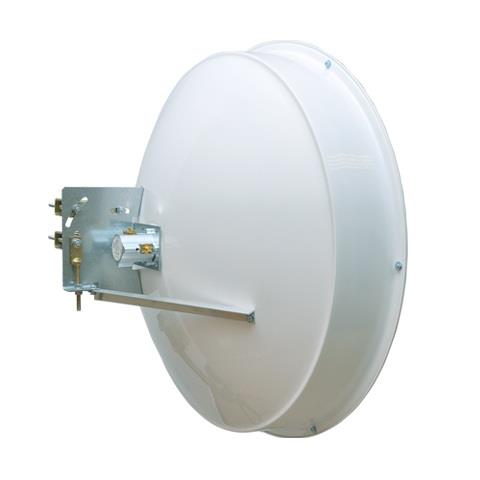

Jirous JRC-29EX MIMO parabola antenna pár 5GHz 29dBi, N aljzat

Márka: Jirous
Cikkszám: JRC-29EX MIMO
Kiszerelés: pár

Termékismertető

Single-polarized antennas can be modified by using Upgrade kit JRC-29 MIMO

dual-polarized antenna, horizontal and vertical polarization
easy to use with GentleBOX JR-200
keenly priced
only 1 antenna instead 2 save money for mast!
extra high front to back ratio
metallic collar assures increased isolation between antenna on mast = lower interference between links
direction links for long and medium distance, also short in difficult conditions
client antenna for large distances and difficult conditions
setting elevation (of gradient) and azimuth has independent adjustment
you can count attainable distance from section of calculation
radom (plastic parabola cover) for each antenna free!

Frequency range	5,4 - 5,9 GHz
Gain	28,6 ±0,6dBi
VSWR	≤ 1,5
Front to back ratio	≥ 44 dB
Beamwidth_{-3 dB}	5,8°
Polarization	linear, horizontal and vertical
Isolation between connectors	28dB
Connector	N - Female - JRC-29EX MIMO R-SMA - JRC-29EX MIMO-SMA
Parabola	? 65 cm aluminium alloy with baking colour
Cover	UV steady plastic ABS
Instalation for mast	? 27 - 74 mm

The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.

Using with GentleBOX JR-200 we recommend JRC-29EX MIMO-SMA with R-SMA connectors.
Bracket GentleCLIP par for mounting Ubiquiti Rocket M5
Pigtail R-SMA/MMCX for JRC-29EX MIMO-SMA
Pigtail R-SMA/UF.L for JRC-29EX MIMO-SMA
