Mikrotik RBLHG-2nD-XL with 21dBi 2.4GHz antenna, Dual Chain 802.11bgn wireless, 650MHz CPU, 64MB RAM, 1 x LAN
Nyitólap
> Mikrotik
> Intergrated Solutions
> Wireless Systems
> RBLHG-2nD-XL with 21dBi 2.4GHz antenna, Dual Chain 802.11bgn wireless, 650MHz CPU, 64MB RAM, 1 x LAN
Márka: Mikrotik
Cikkszám: LHG XL 2 (RBLHG-2nD-XL)
Kiszerelés: db
Cikkszám: LHG XL 2 (RBLHG-2nD-XL)
Kiszerelés: db
Termékismertető

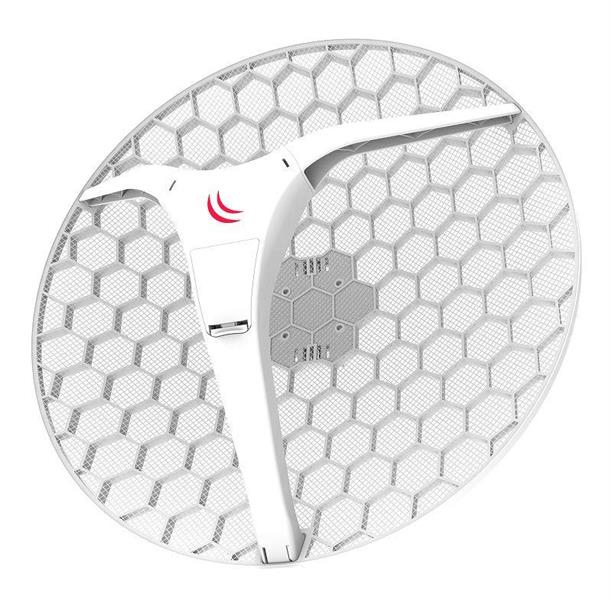

The Light Head Grid (LHG) is a compact and light wireless device with an integrated dual polarisation grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE.
LHG XL 2 is equipped with 21 dBi grid antenna for longer distances.
Specifications
| Details | |
|---|---|
| Product code | RBLHG-2nD-XL |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | ? 550 x 245 mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40 to 70° C |
| Suggested price | $68.00 |
Powering
| Details | |
|---|---|
| Max Power consumption | 5W |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 21 |
| Wireless 2.4 GHz chip model | QCA9533 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -93 |
| 6MBit/s | 25 | -94 |
| 54MBit/s | 22 | -80 |
| MCS0 | 25 | -94 |
| MCS7 | 21 | -75 |
