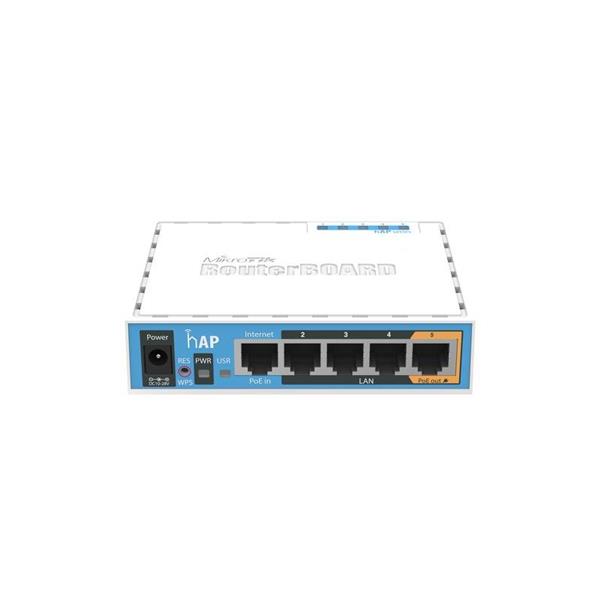

This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.
The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
Details | |
---|---|
Product code | RB951Ui-2nD |
CPU nominal frequency | 650 MHz |
CPU core count | 1 |
Size of RAM | 64 MB |
10/100 Ethernet ports | 5 |
10/100/1000 Ethernet ports | None |
MiniPCI slots | 0 |
MiniPCI-e slots | 0 |
Wireless chip model | QCA9531-BL3A-R |
Wireless standards | 802.11b/g/n |
Number of USB ports | 1 |
Power Jack | 1 |
Supported input voltage | 6 V - 30 V |
PoE in | Yes |
PoE out | Yes |
Voltage Monitor | No |
CPU temperature monitor | No |
PCB temperature monitor | No |
Dimensions | 113 x 89 x 28cm |
Operating System | RouterOS |
Operating temperature range | -30 + 70 C |
Antenna gain DBI | 1.5 |
Current Monitor | No |
CPU | QCA9531-BL3A-R |
Max Power consumption | 5W |
SFP ports | 0 |
SFP+ ports | 0 |
USB slot type | USB type A |
Number of chains | 2 |
Serial port | None |
2.4 GHz | ||
---|---|---|
TX | RX | |
1MBit/s | 22 | -96 |
11MBit/s | 22 | -89 |
6MBit/s | 20 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 20 | -93 |
MCS7 | 16 | -71 |
wireless parameters may be limited in software, depending on your local regulatory limitations
hAP Datasheet.pdf |
