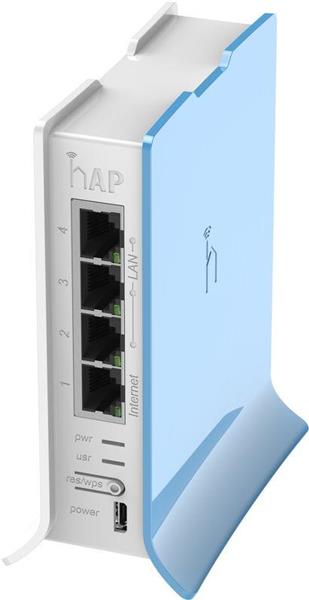

The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
Details | |
---|---|
Product code | RB941-2nD |
CPU nominal frequency | 650 MHz |
CPU core count | 1 |
Size of RAM | 32 MB |
10/100 Ethernet ports | 4 |
10/100/1000 Ethernet ports | None |
MiniPCI slots | 0 |
MiniPCI-e slots | 0 |
Wireless chip model | QCA9531-BL3A-R |
Wireless standards | 802.11b/g/n |
Number of USB ports | 0 |
Power Jack | 1 |
PoE out | No |
Supported input voltage | 5 V - 5 V |
PoE in | No |
Voltage Monitor | No |
CPU temperature monitor | No |
PCB temperature monitor | No |
License level | 4 |
Antenna gain DBI | 1.5 |
Current Monitor | No |
CPU | QCA9531-BL3A-R |
Max Power consumption | 3W |
SFP ports | None |
SFP+ ports | None |
Number of chains | 2 |
Serial port | None |
2.4 GHz | ||
---|---|---|
TX | RX | |
1MBit/s | 22 | -96 |
11MBit/s | 22 | -89 |
6MBit/s | 20 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 20 | -93 |
MCS7 | 16 | -71 |
hAP lite Datasheet.pdf |
