Mikrotik mAP lite with 650Mhz CPU, 64MB RAM, 1xLAN, built-in Dual Chain 2.4Ghz 802.11bgn Dual Chain wireless
Nyitólap
> Mikrotik
> Intergrated Solutions
> Wireless for SoHo
> mAP lite with 650Mhz CPU, 64MB RAM, 1xLAN, built-in Dual Chain 2.4Ghz 802.11bgn Dual Chain wireless
Márka: Mikrotik
Cikkszám: mAP lite (RBmAPL-2nD)
Kiszerelés: db
Cikkszám: mAP lite (RBmAPL-2nD)
Kiszerelés: db
Termékismertető

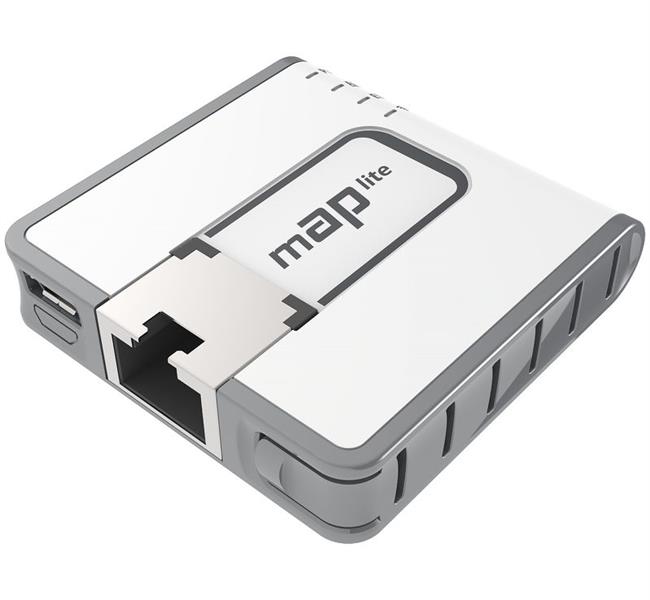

mAP lite
The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.
You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
Product specifications
| Details | |
|---|---|
| Product code | RBmAPL-2nD |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| Wireless chip model | QCA9533 |
| Wireless standards | 802.11b/g/n |
| Power Jack | 1 |
| PoE in | 802.3af/at (+4,5/-7,8 or +3,6/-1,2) |
| Supported input voltage | 5 V - 60 V |
| Dimensions | 48x49x11mm |
| Operating System | RouterOS |
| Operating temperature range | -30 + 70 C |
| License level | 4 |
| Antenna gain DBI | 1.5 |
| CPU | QCA9533 |
| Max Power consumption | 3.5W |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
| Suggested price | $25 |
Wireless specifications
| 2.4 GHz | ||
|---|---|---|
| TX | RX | |
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Included parts
5V 1A power adapter
Performance test results
| RBmAPL-2nD | QCA9533 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Letölthető fájlok, adatlapok
| mAP_lite-160217131927.pdf |
