Mikrotik 2G/3G/4G/LTE miniPCI-e card with carrier aggregation support (up to 300 Mbps)

Nyitólap > Mikrotik > Interfaces > 2G/3G/4G/LTE miniPCI-e card with carrier aggregation support (up to 300 Mbps)

A vásárláshoz viszonteladói regisztráció
és bejelentkezés szükséges!

Érdeklődjön

Kedvencekhez

Márka: Mikrotik
Cikkszám: R11e-LTE6
Kiszerelés: db

Termékismertető

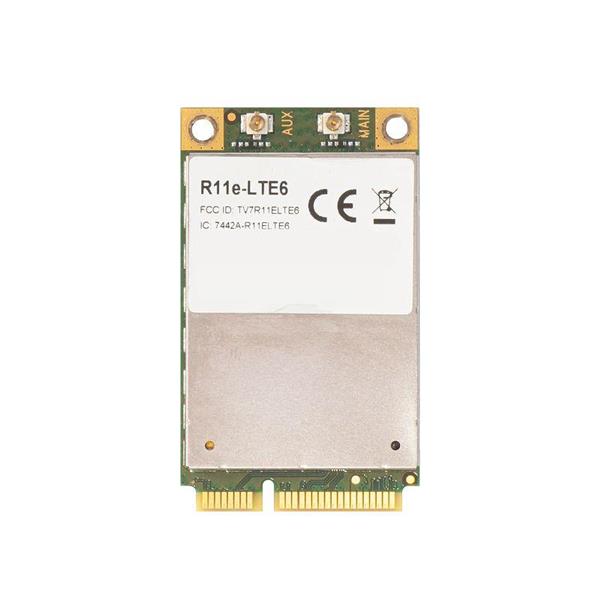

The R11e-LTE6 is an LTE CAT6 modem that delivers up to 300 Mbps downlink and 50 Mbps uplink data rate with 3G and 2G network fallback. CAT6 also features carrier aggregation and allows the device to use multiple bands at the same time. This miniPCIe form factor modem is designed for international bands. It can be used with any of our products that have miniPCIe slot (exceptions RB800 and RB4011).

Specifications

Details
Product code	R11e-LTE6
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-30°C to 70°C
Suggested price	$99.00

Powering

Details
Max power consumption	5 W

Mobile

Details
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
