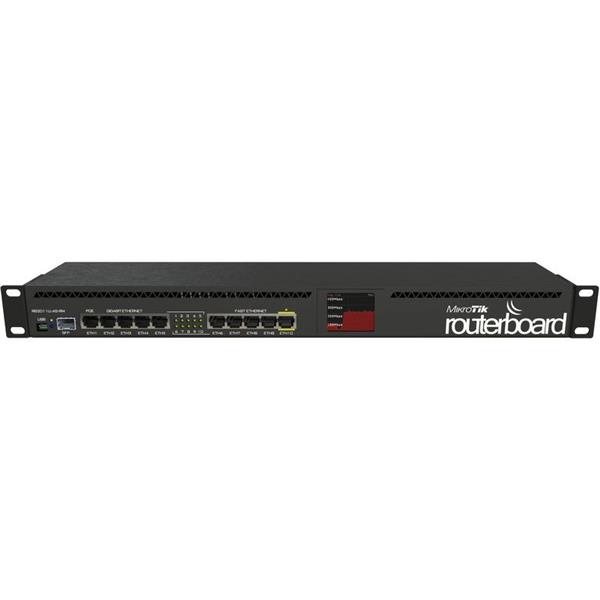

Mikrotik 1U rackmount, 5xEthernet, 5xGigabit Ethernet, USB, LCD, PoE out on port 10, 600MHz CPU, 128MB RAM
Termékismertető
RB2011UiAS-RM
The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)
There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply.
Product specifications
Details |
Product code |
RB2011UiAS-RM |
CPU nominal frequency |
600 MHz |
SFP DDMI |
Yes |
CPU core count |
1 |
Size of RAM |
128 MB |
10/100 Ethernet ports |
5 |
10/100/1000 Ethernet ports |
5 |
MiniPCI slots |
0 |
MiniPCI-e slots |
0 |
Number of USB ports |
1 |
Power Jack |
1 |
802.3af support |
No |
PoE out |
Yes |
PoE in |
Yes |
Supported input voltage |
8 V - 30 V |
Voltage Monitor |
Yes |
CPU temperature monitor |
No |
PCB temperature monitor |
Yes |
Dimensions |
214mm x 86mm for PCB |
Operating System |
RouterOS |
Operating temperature range |
-35C to +65C |
License level |
5 |
Antenna gain DBI |
No |
Current Monitor |
No |
CPU |
AR9344-DC3A-R |
SFP ports |
1 |
SFP+ ports |
0 |
USB slot type |
microUSB type AB |
Number of chains |
0 |
Serial port |
RJ45 |
