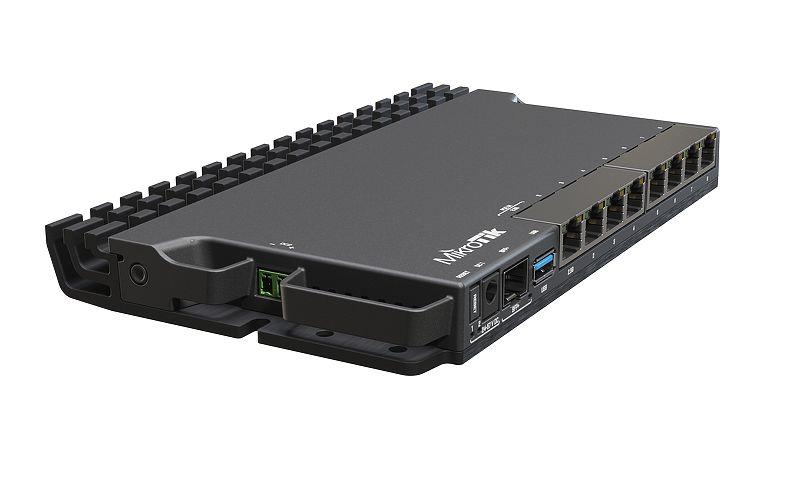

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
Details | |
---|---|
Product code | RB5009UG+S+IN |
Architecture | ARM 64bit |
CPU | 88F7040 |
CPU core count | 4 |
CPU nominal frequency | 350-1400 (auto) MHz |
RouterOS license | 5 |
Operating System | RouterOS (v7 only) |
Size of RAM | 1 GB |
Storage size | 1 GB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 60°C |
Suggested price | $219.00 |
Details | |
---|---|
Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
DC jack input Voltage | 24-57 V |
2-pin terminal input Voltage | 24-57 V |
Max power consumption | 20 W |
Max power consumption without attachments | 14 W |
FAN count | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 24-57 V |
Details | |
---|---|
10/100/1000 Ethernet ports | 7 |
Number of 2.5G Ethernet ports | 1 |
Details | |
---|---|
SFP+ ports | 1 |
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB 3.0 type A |
Max USB current (A) | 1 |
Details | |
---|---|
CPU temperature monitor | Yes |
Details | |
---|---|
Certification | CE, EAC, ROHS |
